Axor Edge Thermostatic Module Select 470/100 For Concealed Installation For 2 Outlets – Polished Gold Optic – 46700990

Axor Edge Thermostatic Module Select 470/100 For Concealed Installation for 2 Outlets – Polished Gold Optic – 46700990

Enhanced with surface structures that create fascinating contrasts the Axor Edge Thermostatic Module Select 470/100 For Concealed Installation for 2 Outlets is a masterpiece through and through.

Taken to a new level by Axor, the Edge collection combines a luxurious look with a sleek and modern design making their range adaptable to every bathroom.

Key Features

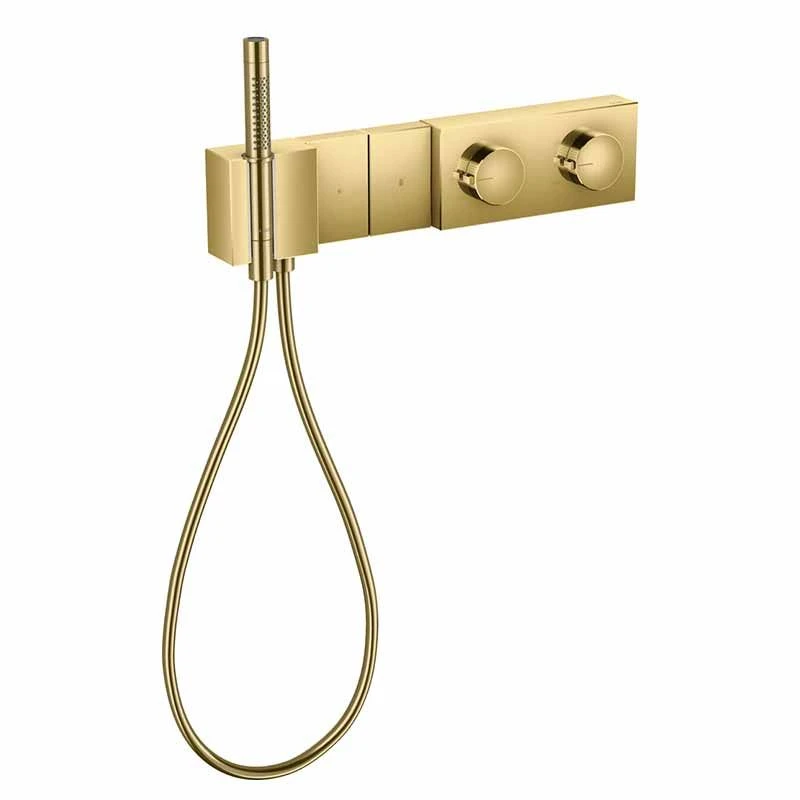

• Consists of: Thermostatic module, shower holder, baton hand shower, shower hose
• Depending on volume flow and installation situation approx. 50% flow rate reduction and integrated shut off function
• Designed to run 2 outlets
• Select push button on / off control for 2 outlets
• Multiple outlets can be run simultaneously
• Wall-mounted
• Concealed installation
• Maximum flow rate (at 3 bar): 35 l/min
• Flow rate hand shower connection 14 l/min at 3 bar
• Thermostat cartridge, start/ stop cartridge
• Safety stop at 40℃
• Maximum temperature can be adjusted on installation
• Hose nut: for shower hoses with cylindrical nut on both sides
• Connection type: basic set
• Min. operating pressure: 1 bar
• Max. operating pressure: 10 bar
• Noise class: I
• Thermostat is delivered with buttons Handshower and RainLarge
• WRAS 2006331

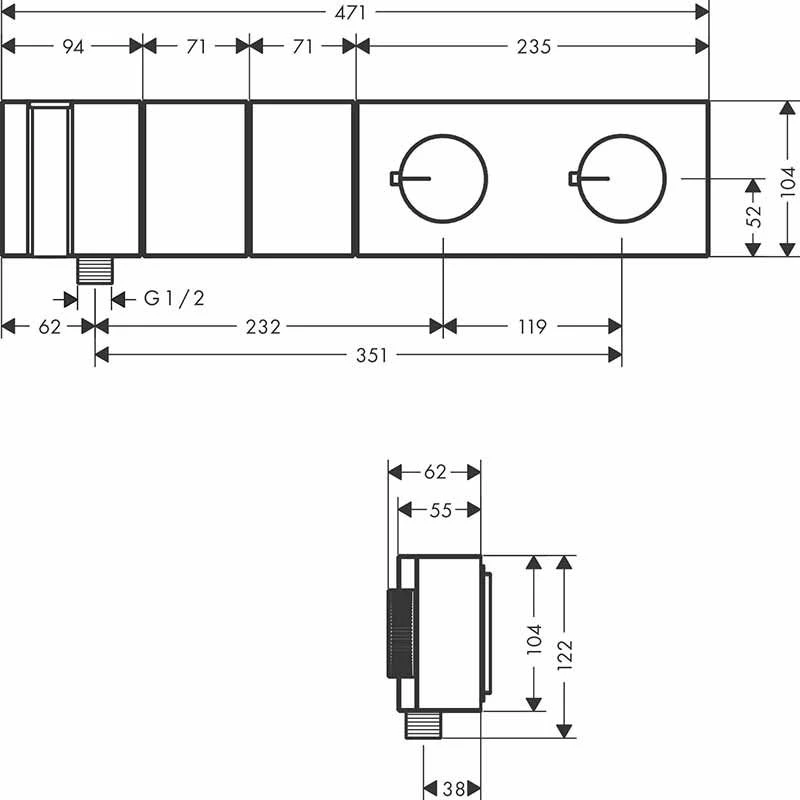

• Size: 104x471mm
• 5 years manufacturers guarantee
