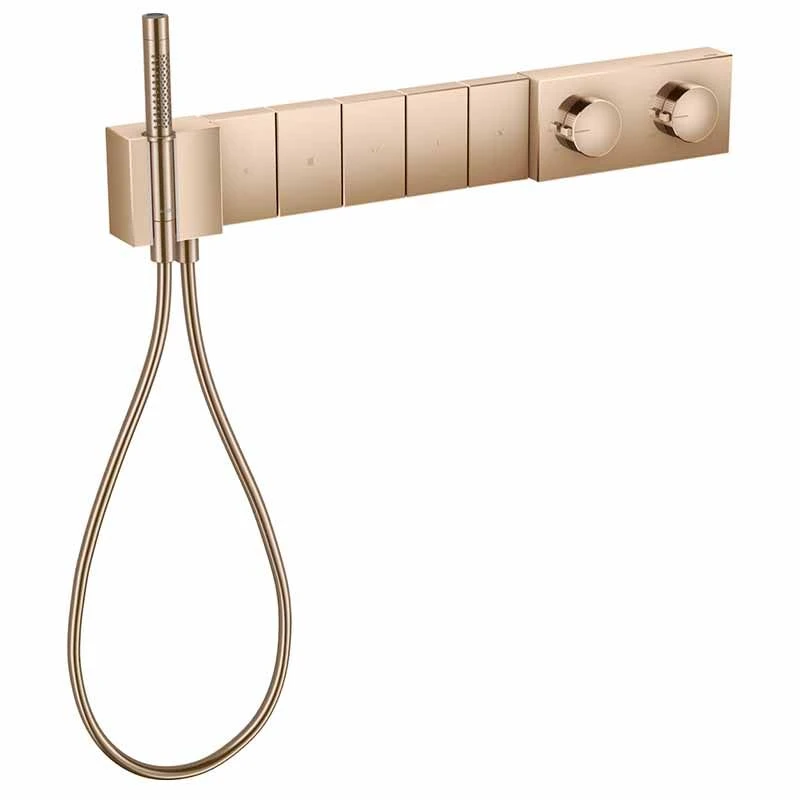

Axor Edge Thermostatic Module Select 680/100 For Concealed Installation For 5 Outlets – Polished Red Gold – 46730300

Axor Edge Thermostatic Module Select 680/100 For Concealed Installation For 5 Outlets – Polished Red Gold – 46730300

Enhanced with surface structures that create fascinating contrasts the Axor Edge Thermostatic Module Select 680/100 For Concealed Installation For 5 Outlets is a masterpiece through and through.

Taken to a new level by Axor, the Edge collection combines a luxurious look with a sleek and modern design making their range adaptable to every bathroom.

Key Features

• Consists of: Thermostatic module, shower holder, baton hand shower, shower hose
• Depending on volume flow and installation situation approx. 50% flow rate reduc-tion and integrated shut off function
• 5 outlets
• Select push-button on/off control for 5 outlets
• Multiple outlets can be run simultaneously
• Wall-mounted
• Concealed installation
• Maximum flow rate (at 3 bar): 38 l/min
• Flow rate hand shower connection 14 l/min at 3 bar
• Thermostat cartridge, start/ stop cartridge
• Safety stop at 40℃
• Maximum temperature can be adjusted on installation
• Hose nut: for shower hoses with cylindrical nut on both sides
• Connection type: basic set
• Min. operating pressure: 1 bar
• Max. operating pressure: 10 bar
• Noise class: I
• Thermostat is delivered with buttons RainLarge, Handshower, Mono, PowderRain In-side and PowderRain Outside
• WRAS 2006331

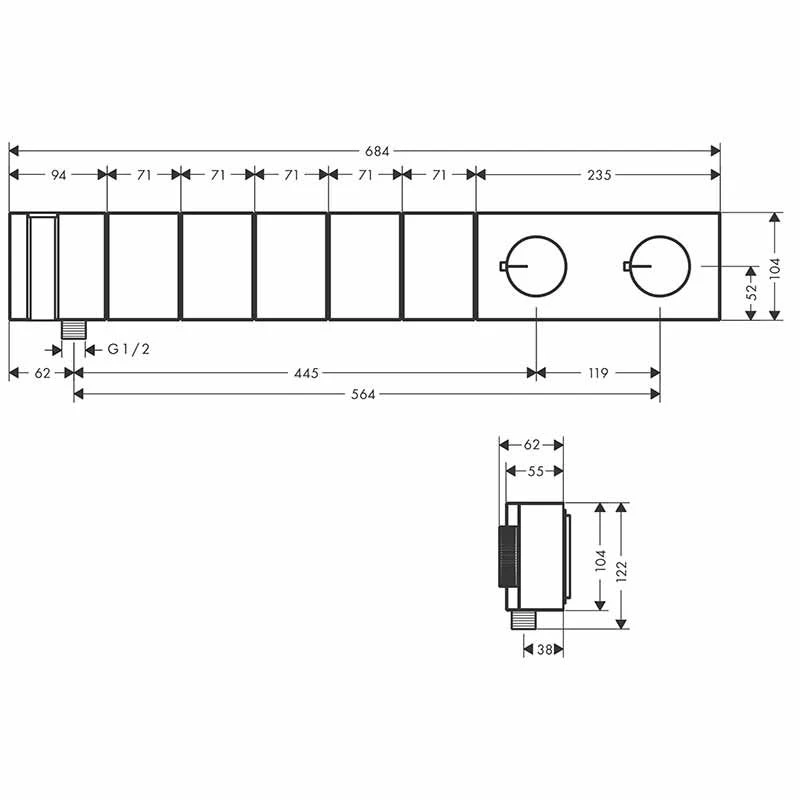

• Size: 104x684mm
• 5 years manufacturers guarantee
